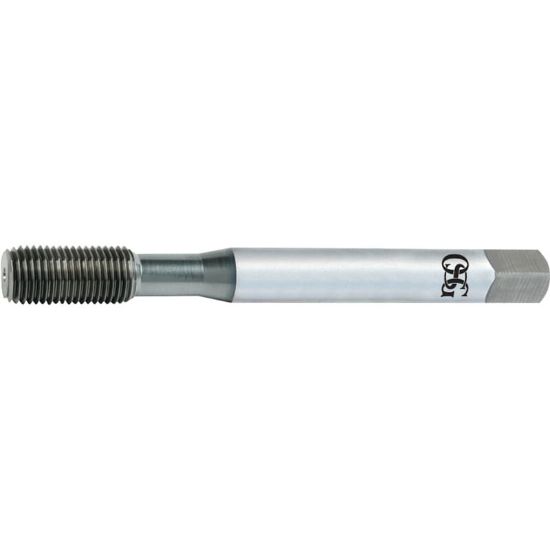

OSG 1400126301 1/4-20.00TPI Roll Form Bottoming 2.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400126301
Delivery date: 3-5 days
$11.02

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Chamfer 2.5P
Tap Square 0.1910
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Thread Size 1/4"
Thread Limit H5/GH5
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tool Material Steel
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
