  • OSG 1400125605 1/4-20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

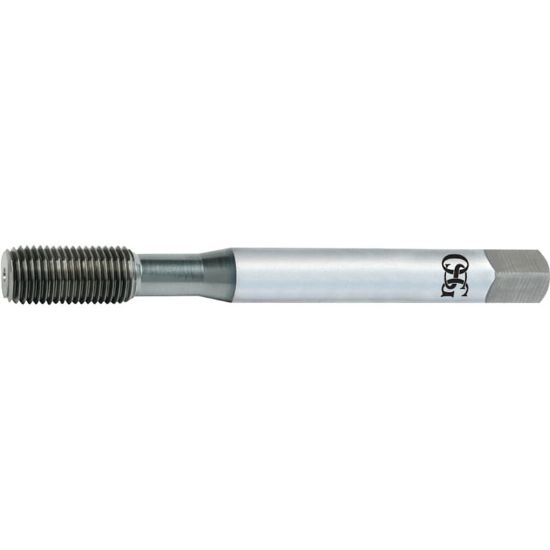

Picture of OSG 1400125605 1/4-20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1400125605 1/4-20.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400125605
Delivery date: 3-5 days
$14.65

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Performance Rating General Performance
Package Size 1
Coating TiN
Shipping State Illinois
Dimensional Specifications
Tap Chamfer 1.5P
Thread Pitch 20.00TPI
Thread Type NC/UNC
Length Type Standard
Tap Type Bottoming
Thread Size 1/4"
Thread Limit H5/GH5
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.2550 6.48MM
Tap Square 0.1910
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
