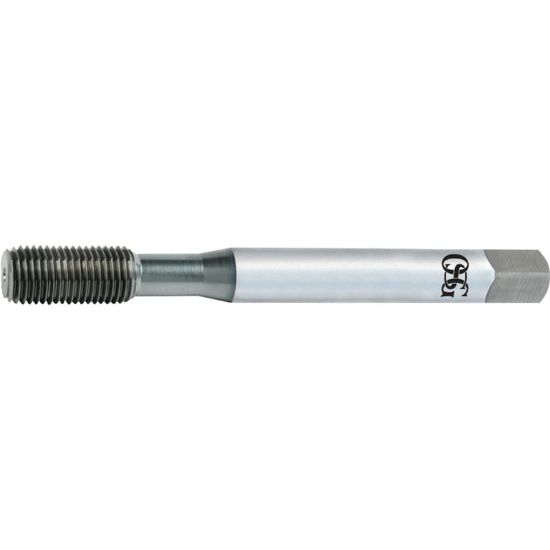

Picture of OSG 1400119905 No.10-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1400119905 No.10-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400119905
Delivery date: 3-5 days
$14.43

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Dimensional Specifications
Thread Size No.10
Length Type Standard
Tap Type Bottoming
Tap Square 0.1520
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tool Material Steel
Tap Chamfer 1.5P
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Roll Form
Overall Len 2.3750 60.33MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
