  • OSG 1400117805 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN

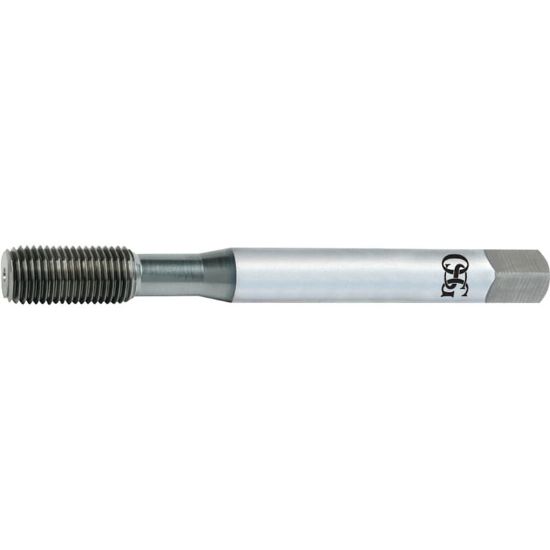

Picture of OSG 1400117805 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN

OSG 1400117805 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400117805
Delivery date: 3-5 days
$14.43

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Tool Material Steel
Tap Type Bottoming
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Chamfer 1.5P-2.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
