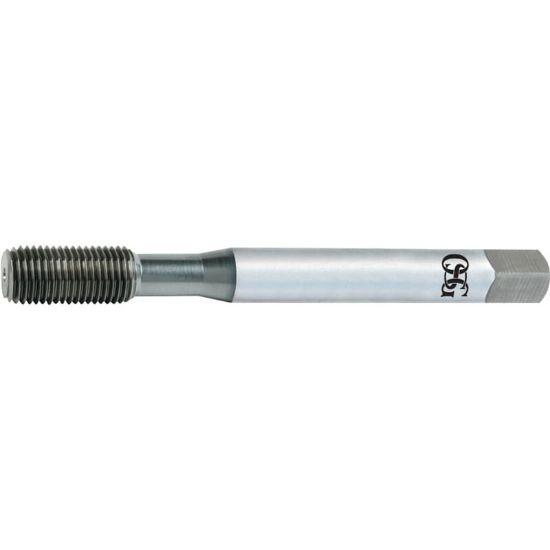

OSG 1400116301 No.8-36.00TPI Roll Form Bottoming 2.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400116301
Delivery date: 3-5 days
$10.78

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Blind Hole Tapping, Roll Form Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Size No.8
Thread Pitch 36.00TPI
Tap Chamfer 2.5P
Thread Limit H5/GH5
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Tap Type Bottoming
Tap Style Roll Form
Overall Len 2.1250 53.98MM
Drill Range 0.1496 3.80MM - 0.1535 3.90MM
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
