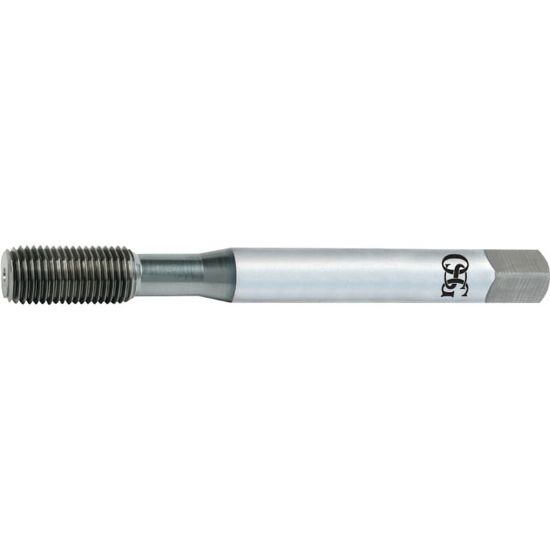

OSG 1400110401 No.6-32.00TPI Roll Form Mod Bottom 2.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400110401
Delivery date: 3-5 days
$10.78

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Style Roll Form
Thread Size No.6
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Chamfer 2.5P
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
