  • OSG 1400110105 No.6-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

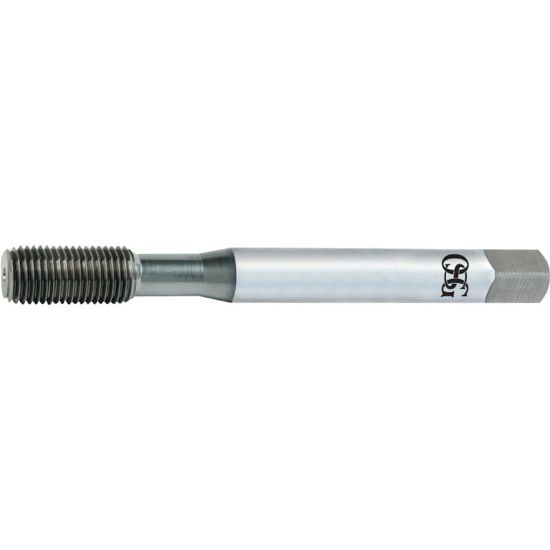

Picture of OSG 1400110105 No.6-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1400110105 No.6-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400110105
Delivery date: 3-5 days
$12.64

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Size No.6
Tap Chamfer 1.5P
Thread Pitch 32.00TPI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Tap Type Bottoming
Thread Limit H4/GH4
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
