  • OSG 1400105305 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

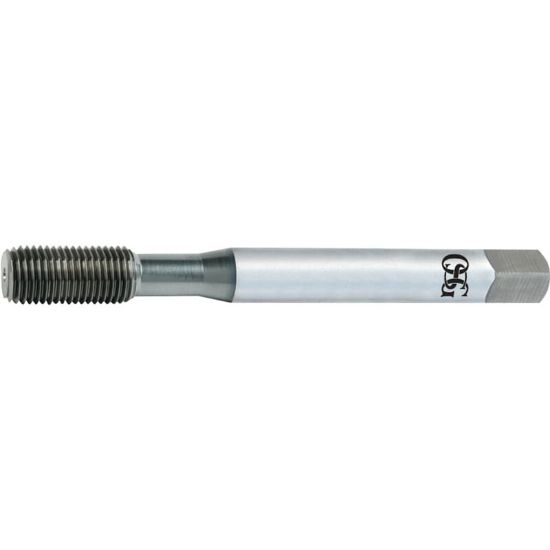

Picture of OSG 1400105305 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

OSG 1400105305 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400105305
Delivery date: 3-5 days
$15.03

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Mod Bottom Tapping, Tapping
Coating TiN
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 40.00TPI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Roll Form
Tool Material Steel
Tap Square 0.1100
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
