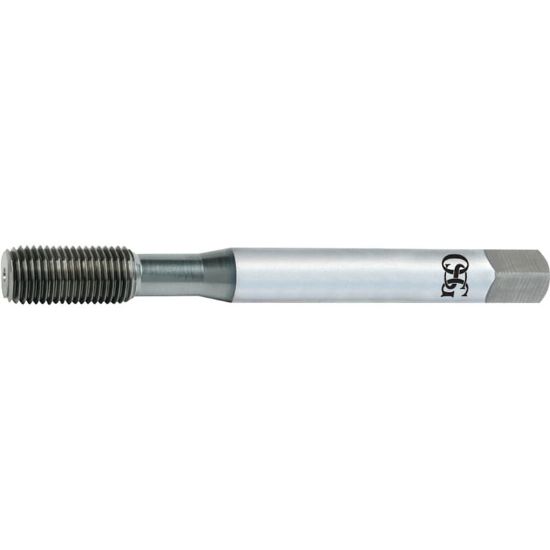

OSG 1400102301 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400102301
Delivery date: 3-5 days
$14.51

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.0P
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.2
Thread Limit H3/GH3
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Thread Type NC/UNC
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
