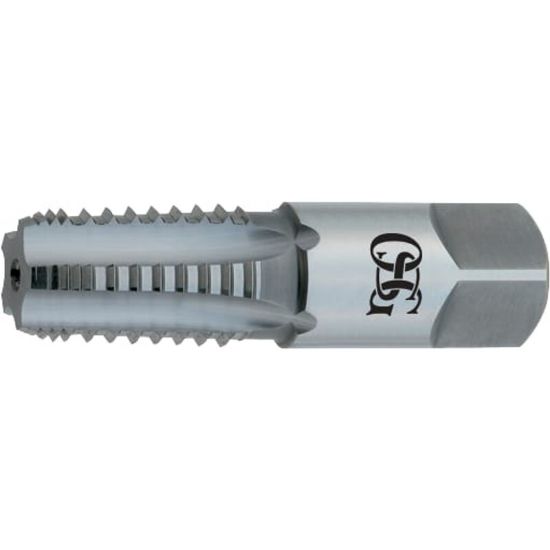

OSG 1315501 1/2-14.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1315501
Delivery date: 3-5 days
$81.98

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.6880 17.48MM
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 1/2"
Flutes/Inserts 5
Flute Direction R - Right
Tap Square 0.5150
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 3.1250 79.38MM
Drill Range 17.8500 453.39MM
Tap Type Pipe
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
