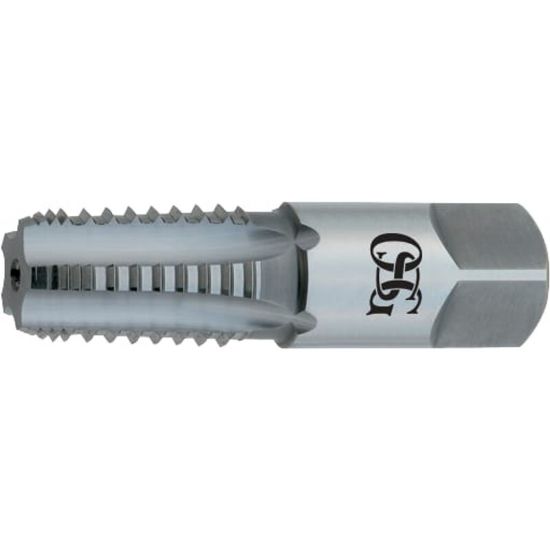

OSG 1315100 1/8-27.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1315100
Delivery date: 3-5 days
$36.68

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4380 11.13MM
Tap Type Pipe
Flutes/Inserts 5
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Overall Len 2.1250 53.98MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Drill Range 0.3319 8.43MM
Length Type Standard
Thread Limit PIPE
Tap Square 0.3280
Tap Style Pipe Spiral Flute
Flute Direction R - Right
Thread Size 1/8"
Thread Pitch 27.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Agricultural YES
