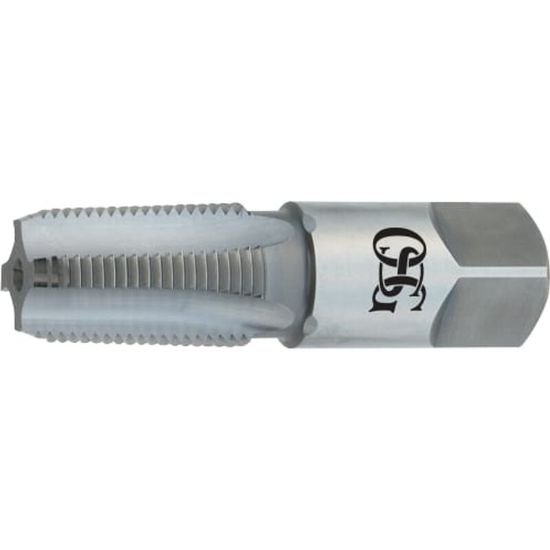

OSG 1310300 1/4-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1310300
Delivery date: 3-5 days
$26.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.4200
Thread Size 1/4"
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
