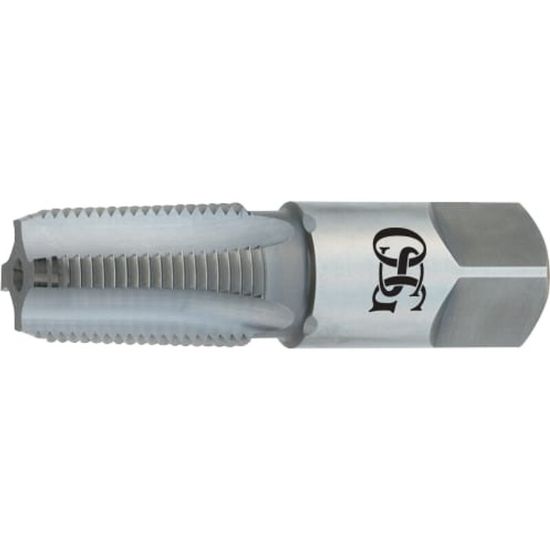

OSG 1310101 1/8-27.00TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1310101
Delivery date: 3-5 days
$23.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating Steam Oxide
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Overall Len 2.1250 53.98MM
Tap Square 0.3270
Dimension Standard ANSI/ANSI
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Tap Style Pipe Spiral Flute
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
