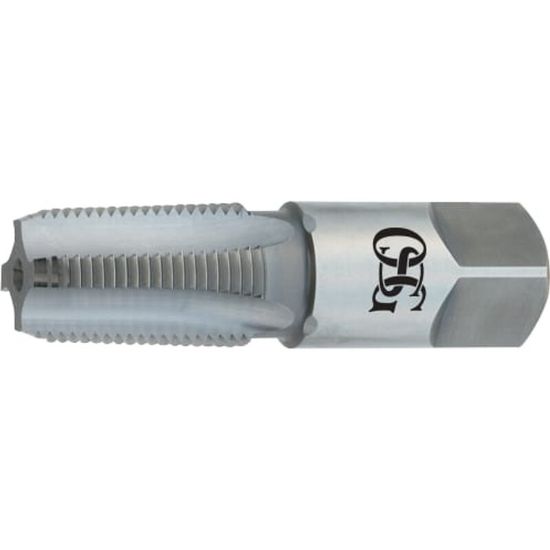

OSG 1310005 1/16-27.00TPI Pipe Spiral Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1310005
Delivery date: 3-5 days
$27.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.1250 53.98MM
Thread Pitch 27.00TPI
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Tap Square 0.2330
Length Type Standard
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Drill Range 0.2417 6.14MM
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
