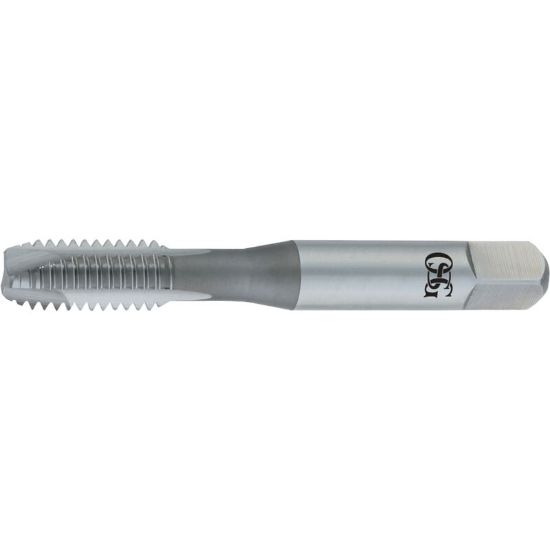

OSG 1243605 3/4-10.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1243605
Delivery date: 3-5 days
$54.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Tap Type Plug
Machine Side Connection Type Tap Collet
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Thread Size 3/4"
Flutes/Inserts 3
Tool Material Steel
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Tap Square 0.4420
Tap Style Cut Spiral Point
Flute Direction R - Right
Length Type Standard
Thread Pitch 10.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.5900 14.99MM
Tap Chamfer 3.5P-4.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
