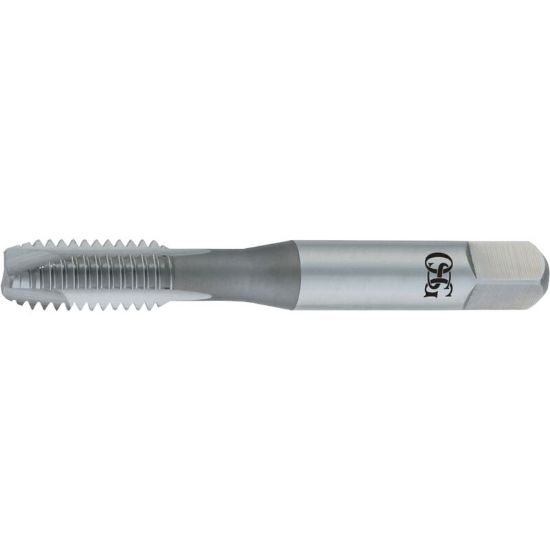

OSG 1241601 3/8-16.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1241601
Delivery date: 3-5 days
$9.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Tap Square 0.2860
Flute Direction R - Right
Overall Len 3.1000 78.74MM
Length Type Standard
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 3.5P-4.5P
Tool Material Steel
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
