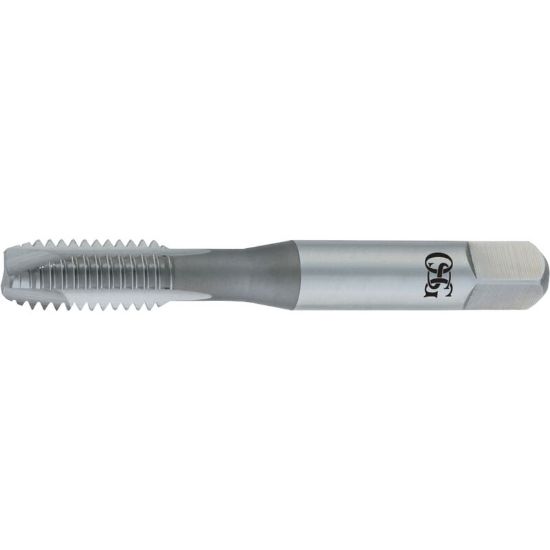

OSG 1231600 3/8-16.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1231600
Delivery date: 3-5 days
$7.83

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Style Cut Spiral Point
Thread Size 3/8"
Thread Type NC/UNC
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Cut Rating <25HRC Steel, Grey Iron, Graphite
Tool Material Steel
Overall Len 3.1000 78.74MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
