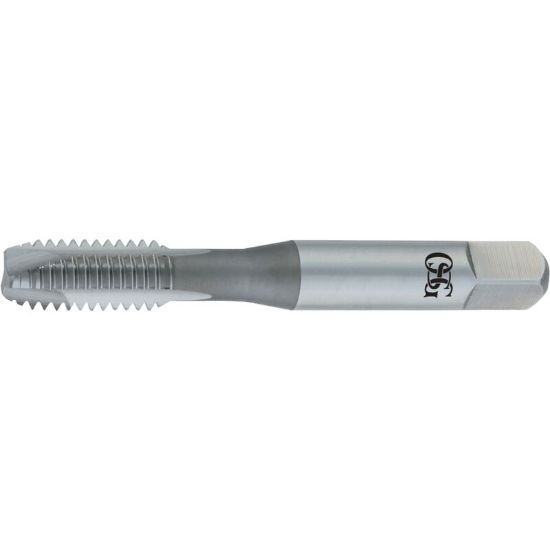

OSG 1230800 5/16-18.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1230800
Delivery date: 3-5 days
$6.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Cut Rating <25HRC Steel, Grey Iron, Graphite
Tool Material Steel
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Machine Side Connection Type Tap Collet
Overall Len 2.8500 72.39MM
Tap Style Cut Spiral Point
Thread Pitch 18.00TPI
Tap Square 0.2380
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Thread Size 5/16"
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
