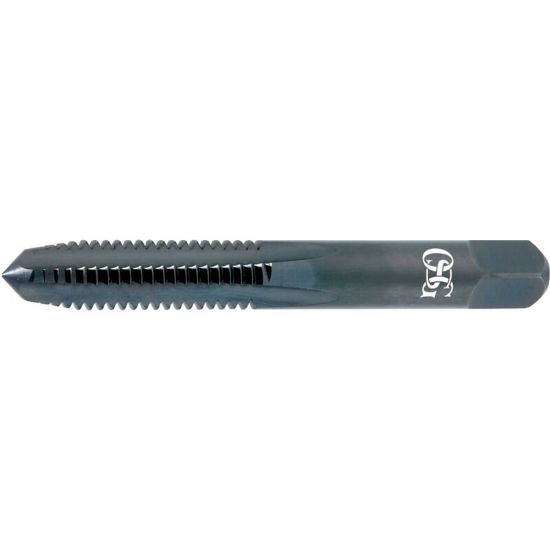

OSG 1142500 1/2-13.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1142500
Delivery date: 3-5 days
$16.22

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2740
Tap Type Plug
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Thread Size 1/2"
Tool Material Steel
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flutes/Inserts 4
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
