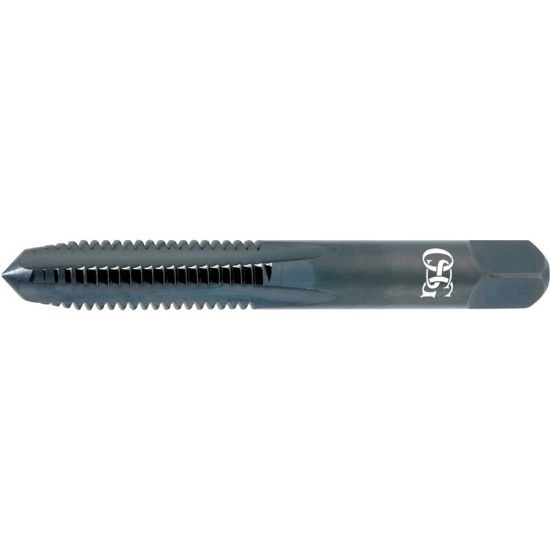

OSG 1136800 1-14.00TPI Hand Tap Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1136800
Delivery date: 3-5 days
$75.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Flute Direction R - Right
Drill Range 0.9374 23.81MM
Length Type Standard
Tap Type Bottoming
Thread Type NS/UNS
Tap Chamfer 1.5P-2.0P
Thread Size 1"
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Tap Style Hand Tap
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.8000 20.32MM
Tool Material Steel
Tap Square 0.6000
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
