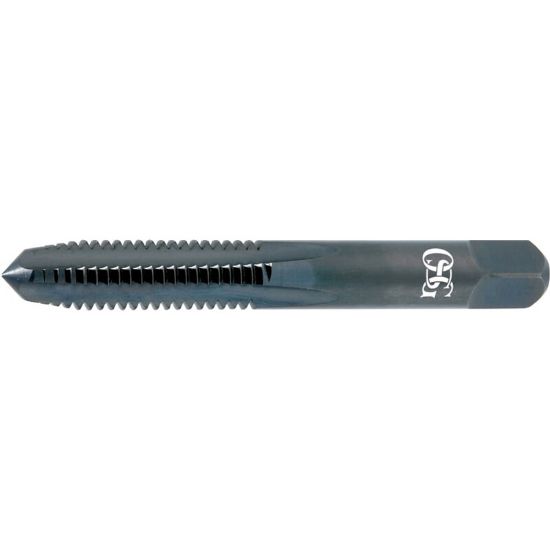

OSG 1123400 9/16-18.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1123400
Delivery date: 3-5 days
$23.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 18.00TPI
Cut Rating <25HRC Steel, Grey Iron, Graphite
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Square 0.3220
Tap Style Cut Spiral Point
Tap Type Plug
Thread Size 9/16"
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
