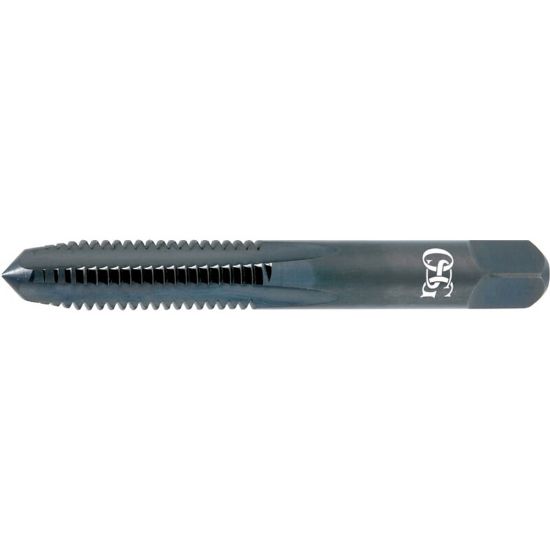

OSG 1121401 3/8-16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1121401
Delivery date: 3-5 days
$7.34

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron, Graphite
Tool Material Steel
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 4
Flute Direction R - Right
Shank/Pilot Dia 0.3800 9.65MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Tap Square 0.2850
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
