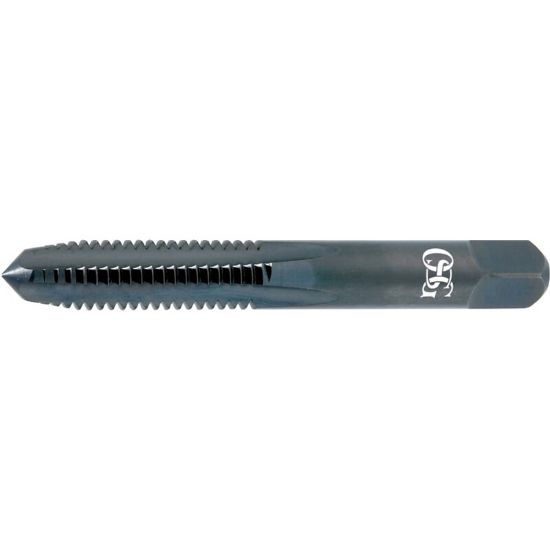

OSG 1120701 5/16-18.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1120701
Delivery date: 3-5 days
$6.49

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating Steam Oxide
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 5/16"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2380
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Tool Material Steel
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.3170 8.05MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
