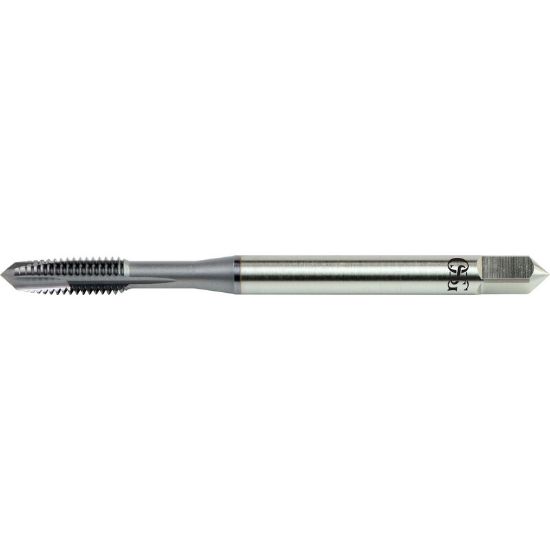

OSG 1111601303 M12-1.75MM Cut Spiral Point Plug 3.5P-4.5P HSSE Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1111601303
Delivery date: 3-5 days
$30.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Dimension Standard ANSI/ANSI
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Chamfer 3.5P-4.5P
Cut Rating Aluminum, Brass, Graphite, Plastic
Overall Len 4.3307 110.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Thread Type Metric
Thread Limit D6
Tap Type Plug
Thread Size M12
Shank/Pilot Dia 0.3669 9.32MM
Flutes/Inserts 3
Thread Pitch 1.75MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
