  • OSG 1111500705 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

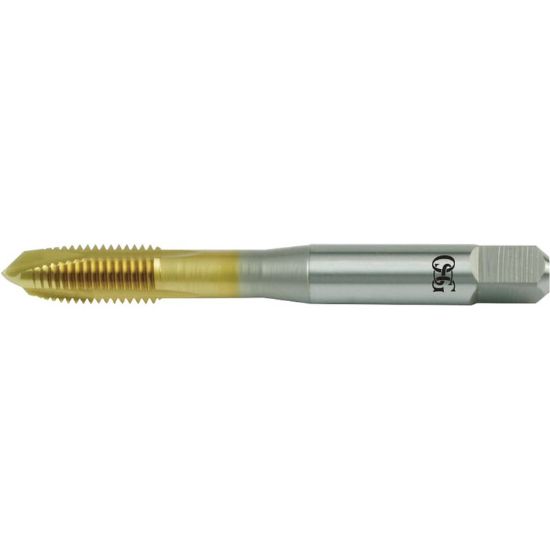

Picture of OSG 1111500705 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

OSG 1111500705 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1111500705
Delivery date: 3-5 days
$15.81

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size M6
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Thread Type Metric
Overall Len 2.4803 63.00MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
