  • OSG 1101511905 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

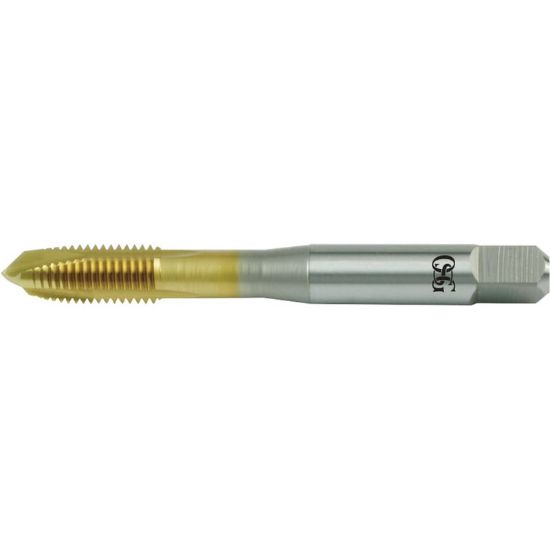

Picture of OSG 1101511905 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

OSG 1101511905 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1101511905
Delivery date: 3-5 days
$20.56

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3800 9.65MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Square 0.2850
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
