  • OSG 1101509305 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

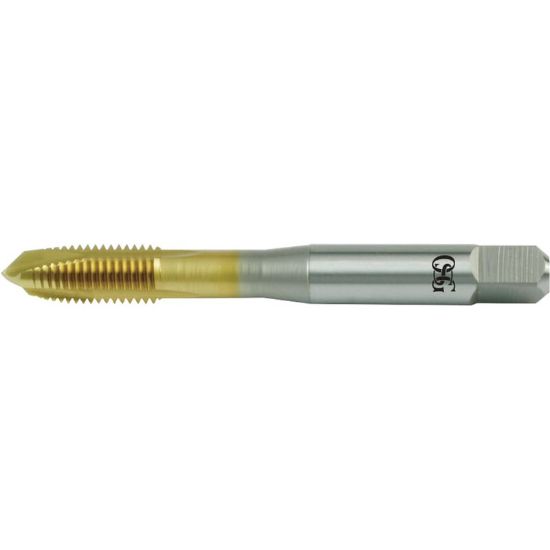

Picture of OSG 1101509305 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

OSG 1101509305 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1101509305
Delivery date: 3-5 days
$15.63

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Thread Size No.10
Tap Chamfer 4.0P-5.0P
Tap Type Plug
Flute Direction R - Right
Tap Square 0.1510
Length Type Standard
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tool Material Steel
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Thread Pitch 24.00TPI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
