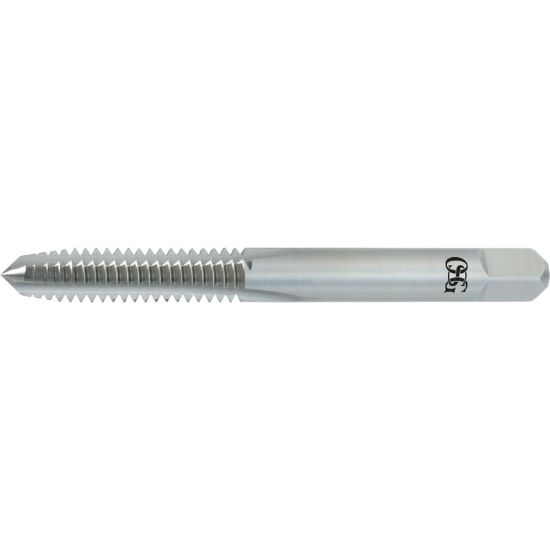

OSG 1050800 No.10-24.00TPI Hand Tap Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1050800
Delivery date: 3-5 days
$5.41

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Type Bottoming
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.5P-2.0P
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1510
Length Type Standard
Tap Style Hand Tap
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
