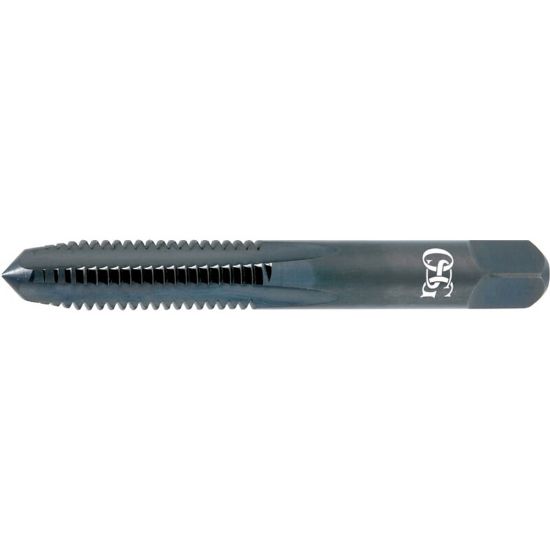

OSG 1023701 No.6-32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1023701
Delivery date: 3-5 days
$4.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Thread Size No.6
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Tap Square 0.1090
Length Type Standard
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 3.5P-4.5P
Tap Type Plug
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.1400 3.56MM
Overall Len 2.0000 50.80MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
