ANSI: N9MT11T3CT NC10 NC10
ISO: N9MT11T3CT NC10
Share This:
The widest range of inserts for spot drilling, milling and turning see page 6. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

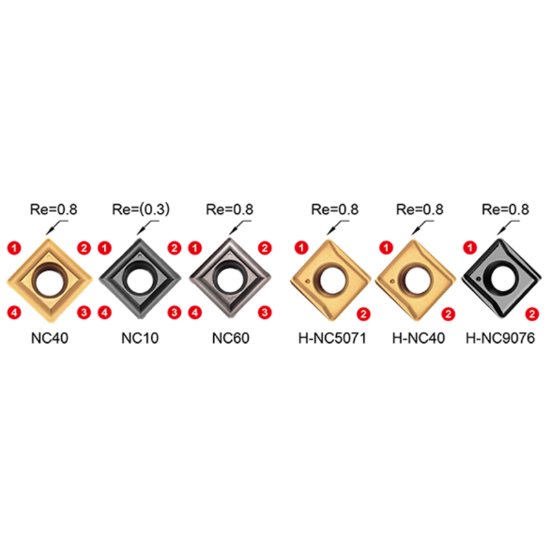

High positive angle and fully ground cutting edge and relief angle. Universal grade for Al, Al-alloy, non-ferrous metal and stainless steel. Each insert has 4 cutting edges.
