  • NINE 99619-V142-5/8 Flat Blade Indexable Drill Boring Bar Dia0.6250 Positive 0.6300 16.00MM Cutter Dia

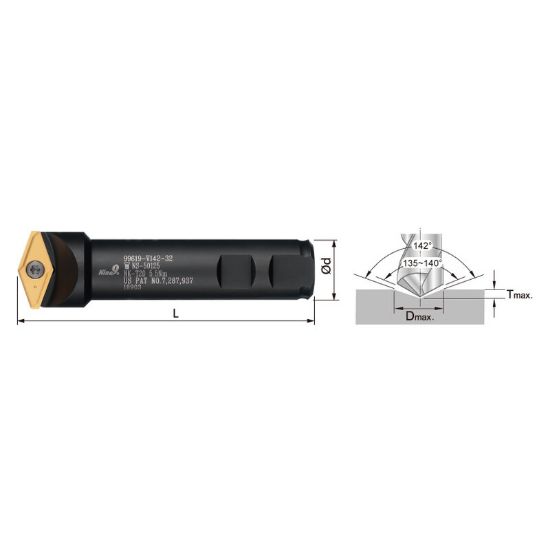

Picture of NINE 99619-V142-5/8 Flat Blade Indexable Drill Boring Bar Dia0.6250 Positive 0.6300 16.00MM Cutter Dia

NINE 99619-V142-5/8 Flat Blade Indexable Drill Boring Bar Dia0.6250 Positive 0.6300 16.00MM Cutter Dia

ANSI: 99619-V142-5/8

ISO: 99619-V142-5/8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20427
Delivery date: 3-5 days
$171.68

Features And Benefits

• Spot drilling prior to drilling may allow for higher drill rates. • Save total machining time! • Extend your drill life with 142 degree spotting. Reduce your drilling costs! • Higher accuracy of positioning and diameter tolerance!

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Package Size 1
Application Spot Drilling
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.0000 101.60MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 8
Cutter Dia 0.6300 16.00MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Inter/Extern Internal
Insert Style V
Insert Shape/Cutter Pocket Shape Flat Blade
Fasteners & Connectors
Insert Screw NS-30072
