  • NINE 99619-V082-3/8 Flat Blade Indexable Drill Spot Drill Weldon 0.3750 Positive 0.3750 9.53MM - 3/8 Cutter Dia

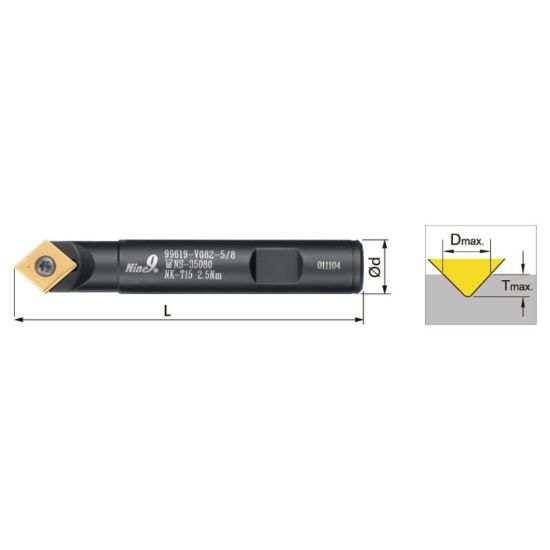

Picture of NINE 99619-V082-3/8 Flat Blade Indexable Drill Spot Drill Weldon 0.3750 Positive 0.3750 9.53MM - 3/8 Cutter Dia

NINE 99619-V082-3/8 Flat Blade Indexable Drill Spot Drill Weldon 0.3750 Positive 0.3750 9.53MM - 3/8 Cutter Dia

ANSI: 99619-V082-3/8

ISO: 99619-V082-3/8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20423
Delivery date: 3-5 days
$143.69

Features And Benefits

82 degree spotting drill with indexable insert. • Special cutting edge design gives higher precision and position when spotting. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Spot Drilling
Made In USA No
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Machine Side Connection Type Weldon
Insert Size Ic 8
Neck Length 1.1020 27.99MM
Chamfer Angle 82.0°
Tool Material Steel
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Insert Style V
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
