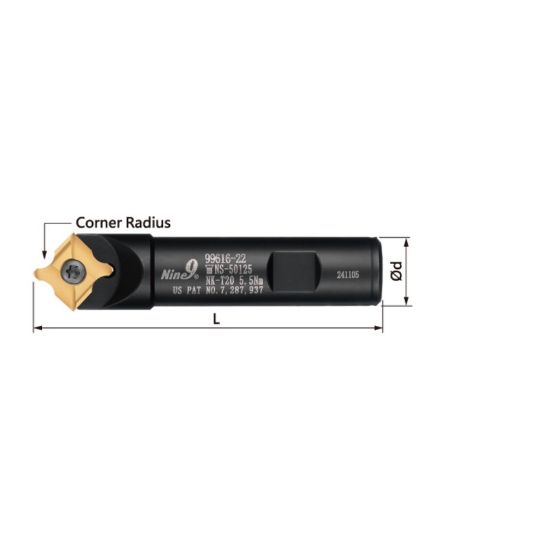

Picture of NINE 99616-22-3/4 Indexable Drill Weldon 0.7500 0.7500 19.05MM - 3/4 Cutter Dia

NINE 99616-22-3/4 Indexable Drill Weldon 0.7500 0.7500 19.05MM - 3/4 Cutter Dia

ANSI: 99616-22-3/4

ISO: 99616-22-3/4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20370
Delivery date: 3-5 days
$226.43

Features And Benefits

90 degree spotting drill with indexable insert. • Spotting produces better hole positioning and geometrically uniform holes. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Application Spot Drilling
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Insert Size Ic 17
Neck Length 1.3780 35.00MM
Cutting & Machining Properties
Insert Style N9
