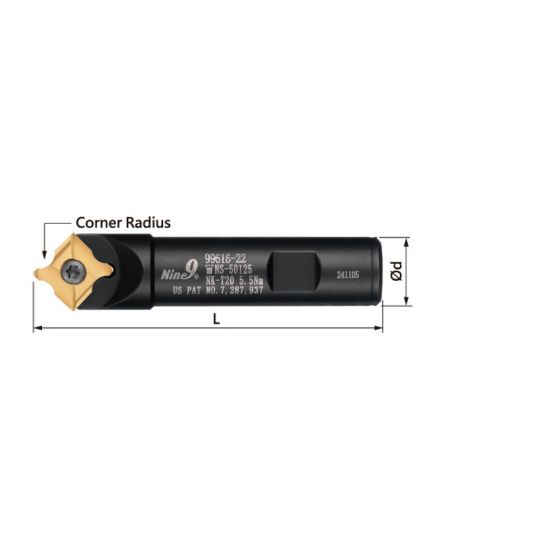

Picture of NINE 99616-22-1 Indexable Drill Boring Bar Dia1.0000 1.0000 25.40MM Cutter Dia

NINE 99616-22-1 Indexable Drill Boring Bar Dia1.0000 1.0000 25.40MM Cutter Dia

ANSI: 99616-22-1

ISO: 99616-22-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20369
Delivery date: 3-5 days
$226.43

Features And Benefits

90 degree spotting drill with indexable insert. • Spotting produces better hole positioning and geometrically uniform holes. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spot Drilling
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Neck Length 1.3390 34.01MM
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 17
Cutting & Machining Properties
Inter/Extern Internal
Insert Style N9
