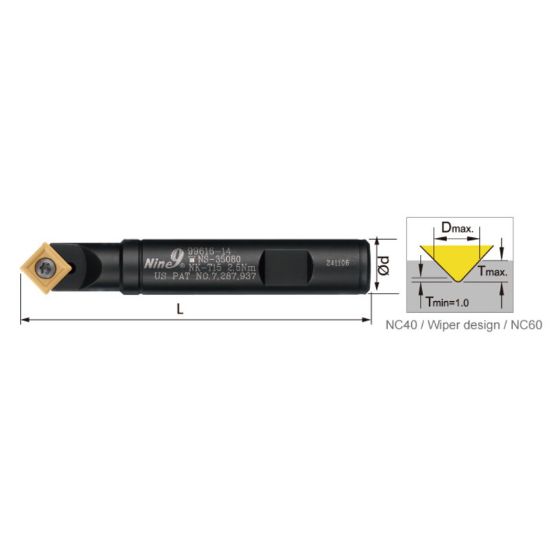

Picture of NINE 99616-14-5/8 Indexable Drill Weldon 0.6250 0.6250 15.88MM - 5/8 Cutter Dia

NINE 99616-14-5/8 Indexable Drill Weldon 0.6250 0.6250 15.88MM - 5/8 Cutter Dia

ANSI: 99616-14-5/8

ISO: 99616-14-5/8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20362
Delivery date: 3-5 days
$171.68

Features And Benefits

• 60 degree spotting drill with indexable insert. • Using standard NC Spot Drill shank. • A single cutting edge design creates higher precision and position when spotting. • Applications: • For spotting, engraving, small grooving on milling machines, machining centers. • For carbon steel, alloy steel and cast iron, general purpose.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Application Spot Drilling
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Weldon
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Neck Length 1.1030 28.02MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11
Chamfer Angle 60.0°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Style N9
Fasteners & Connectors
Insert Screw NS-35080
