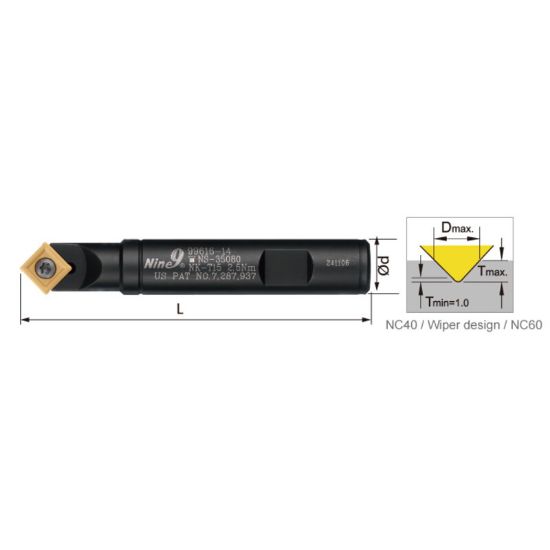

Picture of NINE 99616-14-220L Indexable Drill Cylindrical 0.7874 0.7870 19.99MM Cutter Dia

NINE 99616-14-220L Indexable Drill Cylindrical 0.7874 0.7870 19.99MM Cutter Dia

ANSI: 99616-14-220L

ISO: 99616-14-220L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20361
Delivery date: 3-5 days
$287.33

Features And Benefits

The widest range of inserts for spot drilling, milling and turning see page 6. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Spot Drilling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 11
Shank/Pilot Dia 0.7874 20.00MM
Chamfer Angle 90.0°
Tool Material Steel
Neck Length 1.1030 28.02MM
Machine Side Connection Type Cylindrical
Overall Len 8.6610 219.99MM
Cutter Dia 0.7870 19.99MM
Cutting & Machining Properties
Insert Style N9
