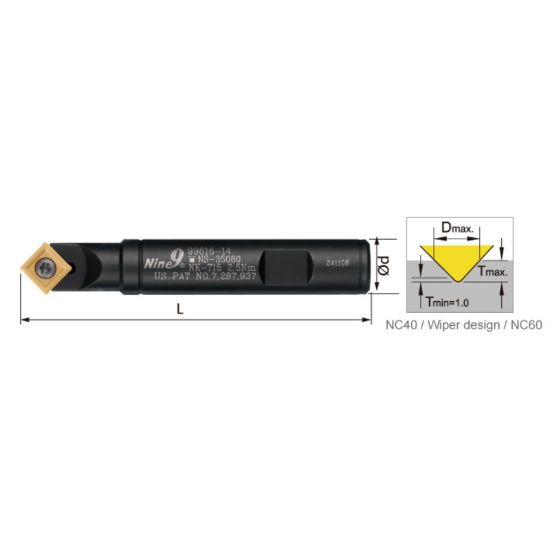

Picture of NINE 99616-14-150L Indexable Drill Cylindrical 0.6299 0.6300 16.00MM Cutter Dia

NINE 99616-14-150L Indexable Drill Cylindrical 0.6299 0.6300 16.00MM Cutter Dia

ANSI: 99616-14-150L

ISO: 99616-14-150L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20360
Delivery date: 3-5 days
$203.35

Features And Benefits

The widest range of inserts for spot drilling, milling and turning see page 6. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Application Spot Drilling
Dimensional Specifications
Chamfer Angle 90.0°
Neck Length 1.1430 29.03MM
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.6300 16.00MM
Overall Len 5.9060 150.01MM
Insert Size Ic 11
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style N9
