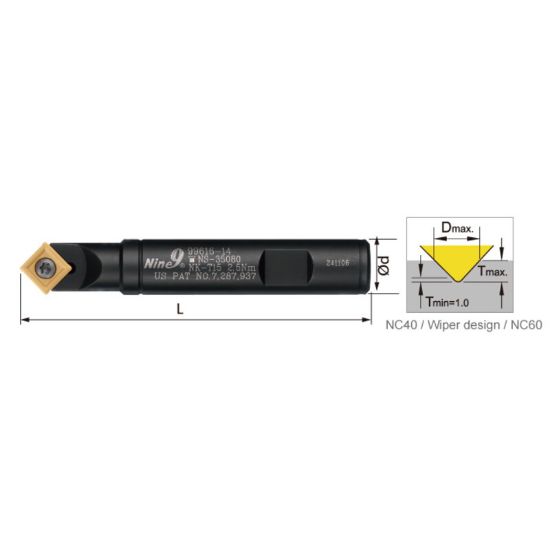

Picture of NINE 99616-14-1/2 Indexable Drill Weldon 0.5000 0.5000 12.70MM - 1/2 Cutter Dia

NINE 99616-14-1/2 Indexable Drill Weldon 0.5000 0.5000 12.70MM - 1/2 Cutter Dia

ANSI: 99616-14-1/2

ISO: 99616-14-1/2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20356
Delivery date: 3-5 days
$171.68

Features And Benefits

• 60 degree spotting drill with indexable insert. • Using standard NC Spot Drill shank. • A single cutting edge design creates higher precision and position when spotting. • Applications: • For spotting, engraving, small grooving on milling machines, machining centers. • For carbon steel, alloy steel and cast iron, general purpose.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Application Spot Drilling
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 11
Chamfer Angle 60.0°
Machine Side Connection Size 0.5000 12.70MM
Neck Length 1.1030 28.02MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style N9
Fasteners & Connectors
Insert Screw NS-35080
