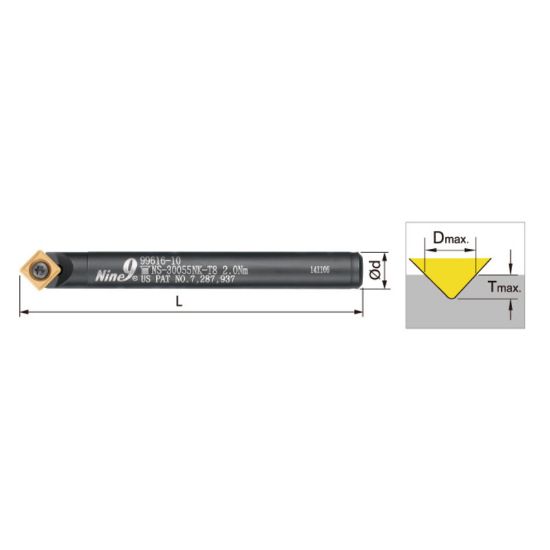

Picture of NINE 99616-10-M6 Indexable Drill Thread On Screw M06 0.3940 10.01MM Cutter Dia

NINE 99616-10-M6 Indexable Drill Thread On Screw M06 0.3940 10.01MM Cutter Dia

ANSI: 99616-10-M6

ISO: 99616-10-M6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20353
Delivery date: 3-5 days
$198.45

Features And Benefits

Single cutting edge design gives higher precision when spotting. • Applications : • Spotting, engraving, grooving and chamfering on milling machines, machining centers. • Spotting, facing, turning on CNC Lathes

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Application Spot Drilling
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size M06
Overall Len 0.9840 24.99MM
Cutter Dia 0.3940 10.01MM
Machine Side Connection Type Screw On
Chamfer Angle 90.0°
Insert Size Ic 8
Cutting & Machining Properties
Insert Style N9
