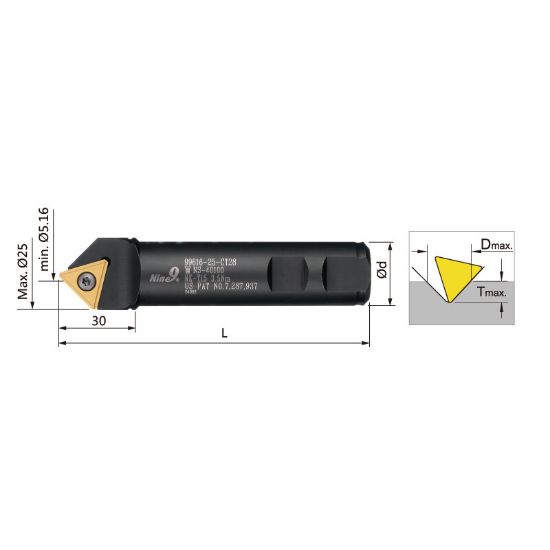

Picture of NINE 99616-1-CT28 Indexable Drill Spot Drill 1.0000 25.40MM Cutter Dia

NINE 99616-1-CT28 Indexable Drill Spot Drill 1.0000 25.40MM Cutter Dia

ANSI: 99616-1-CT28

ISO: 99616-1-CT28

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20368
Delivery date: 3-5 days
$271.52

Features And Benefits

Large spotting diameter with indexable insert. • Spotting produces better hole positioning and geometrically uniform holes. • Applications : • Spotting and chamfering on milling machine, machining centers.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Application Spot Drilling
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Cut Dia Max 0.9840 24.99MM
Insert Size Ic 22
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Overall Len 4.7200 119.89MM
Cut Dia Min 0.1570 3.99MM - #22
Cutting & Machining Properties
Insert Style N9
Inter/Extern Internal
