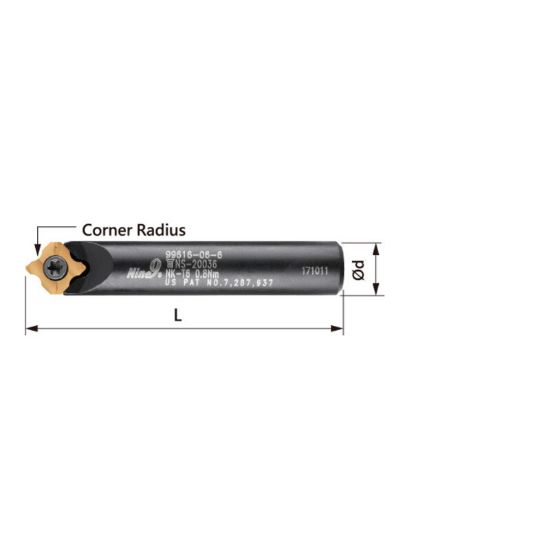

Picture of NINE 99616-06-5 Indexable Drill Spot Drill Cylindrical 0.1969 0.1970 5.00MM Cutter Dia

NINE 99616-06-5 Indexable Drill Spot Drill Cylindrical 0.1969 0.1970 5.00MM Cutter Dia

ANSI: 99616-06-5

ISO: 99616-06-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20346
Delivery date: 3-5 days
$114.47

Features And Benefits

• Smallest indexable spotting drill holder. • Spotting produces better hole positioning and geometrically uniform holes. • Applications : • Spotting, engraving, and chamfering 　　　　　　　on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Application Spot Drilling
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Chamfer Angle 90.0°
Cut Dia Max 0.2360 5.99MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.1970 5.00MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Overall Len 1.3780 35.00MM
Cutting & Machining Properties
Insert Style N9
Inter/Extern External
