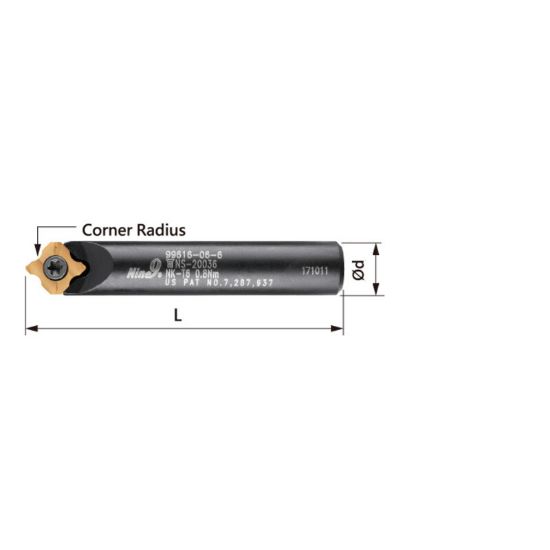

Picture of NINE 99616-06-1/4 Indexable Drill End Mill Cylindrical 0.2500 0.2500 6.35MM - 1/4 - E Cutter Dia

NINE 99616-06-1/4 Indexable Drill End Mill Cylindrical 0.2500 0.2500 6.35MM - 1/4 - E Cutter Dia

ANSI: 99616-06-1/4

ISO: 99616-06-1/4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: NINE
SKU: EVE20344
Delivery date: 3-5 days
$114.47

Features And Benefits

• Smallest indexable spotting drill holder. • Spotting produces better hole positioning and geometrically uniform holes. • Applications : • Spotting, engraving, and chamfering 　　　　　　　on milling machines, machining centers. • Spotting, facing on CNC Lathes.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.2360 5.99MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Chamfer Angle 90.0°
Insert Size Ic 5
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Steel
Overall Len 1.3780 35.00MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Inter/Extern External
Insert Style N9
