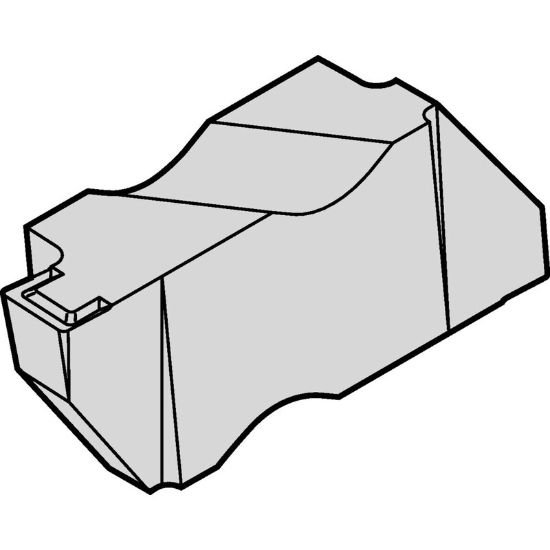

Picture of NG2M195LK WU10PT Widia/Kennametal 3606910 Grooving Insert 0.0770 1.96mm Wide 0.0075 0.19mm Radius

NG2M195LK WU10PT Widia/Kennametal 3606910 Grooving Insert 0.0770 1.96mm Wide 0.0075 0.19mm Radius

Part Number: WID3606910 ISO: NG2M195LK WU10PT ANSI:NG2M195LK WU10PT
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1094338
Vendor: Sussex Tool and Supply
$24.60
This product has a minimum quantity of 10

Description

WIDIA 3606910 Top Notch Grooving Positive TiAlN Width 0.0770 1.96MM An advanced PVD-TiAlN coating over a very deformation-resistant unalloyed carbide substrate. The WU10PT™ grade’s new and improved coating enables speeds to be increased by 50–100%. The WU10PT grade is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Insert Type/Oriantation Top Notch
Dimensions & Sizing
Insert Size Ic 2
Cutting Width 0.0770 1.96MM
Geometry & Angles
Corner Radius 0.0075 0.19MM
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Depth Of Cut Max 0.1100
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade WU10PT
