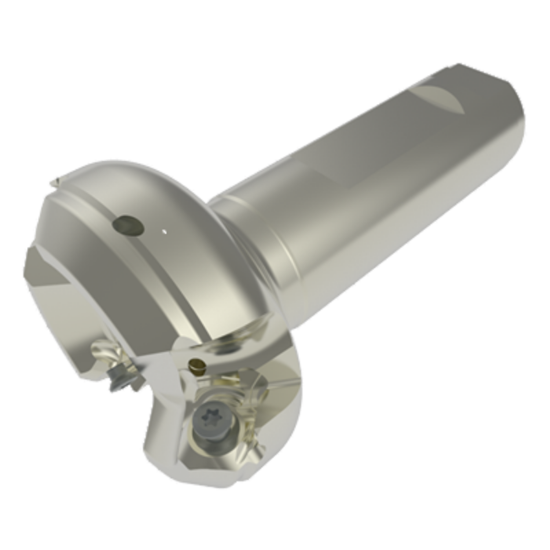

Picture of MITSUBISHI WSX445UR3204FA20M , WSX445 Shank Type Face Milling Cutter Body, 2.000" Cutting Diameter

MITSUBISHI WSX445UR3204FA20M , WSX445 Shank Type Face Milling Cutter Body, 2.000" Cutting Diameter

ANSI: WSX445UR3204FA20M

ISO: WSX445UR3204FA20M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT828609
Delivery date: 3-5 days
$739.76

Details

FACE MILL 45 DEGREE 4 SIDED POSITIVE VERY FREE CUTTING. GREAT FOR LIGHT DUTY MACHINES AND SOFT MATERIALS.

WSX445UR3204FA20M Mitsubishi, WSX445 Shank Type Face Milling Cutter Body, 2.000" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Application Face Milling
Package Size 1
Dimensional Specifications
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.1970
Tool Material Steel
Insert Size Ic 14
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 4
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style SN
Cool Sply Type Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
