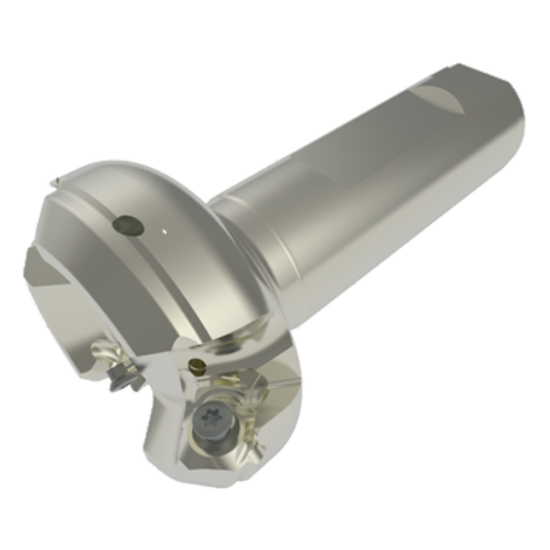

Picture of MITSUBISHI WSX445UR2404FA20M , WSX445 Shank Type Face Milling Cutter Body, 1.500" Cutting Diameter

MITSUBISHI WSX445UR2404FA20M , WSX445 Shank Type Face Milling Cutter Body, 1.500" Cutting Diameter

ANSI: WSX445UR2404FA20M

ISO: WSX445UR2404FA20M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT828588
Delivery date: 3-5 days
$645.62

Details

FACE MILL 45 DEGREE 4 SIDED POSITIVE VERY FREE CUTTING. GREAT FOR LIGHT DUTY MACHINES AND SOFT MATERIALS.

WSX445UR2404FA20M Mitsubishi, WSX445 Shank Type Face Milling Cutter Body, 1.500" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 4
Depth Of Cut Max 0.1970
Tool Material Steel
Insert Size Ic 14
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style SN
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
