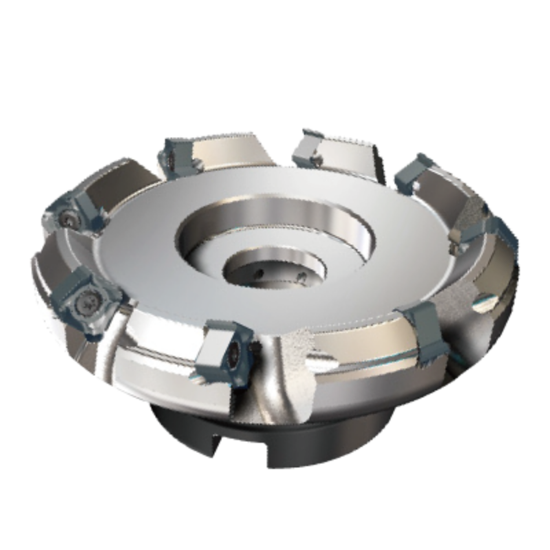

MITSUBISHI WSX445UR0808MN , WSX445 Arbor Type Face Milling Cutter Body, 8.000" Cutting Diameter

ANSI: WSX445UR0808MN

ISO: WSX445UR0808MN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT828545
Delivery date: 3-5 days
$1,972.92

Details

FACE MILL 45 DEGREE 4 SIDED POSITIVE VERY FREE CUTTING. GREAT FOR LIGHT DUTY MACHINES AND SOFT MATERIALS.

WSX445UR0808MN Mitsubishi, WSX445 Arbor Type Face Milling Cutter Body, 8.000" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 14
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.0000 203.20MM
Flutes/Inserts 8
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Cool Sply Type External
Insert Style SN
