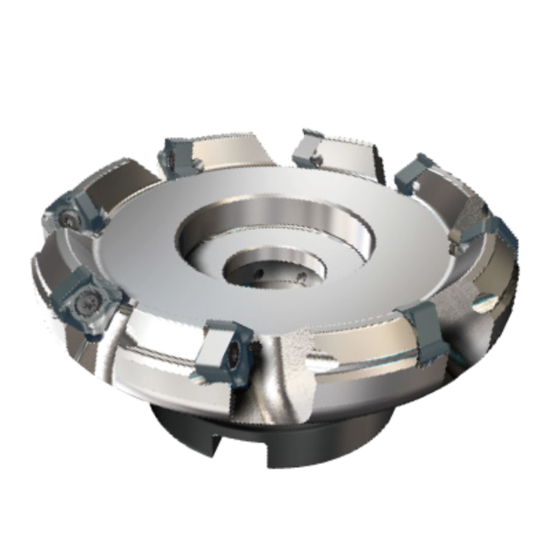

Picture of MITSUBISHI WSX445UR0407EA , WSX445 Arbor Type Face Milling Cutter Body, 4.000" Cutting Diameter

MITSUBISHI WSX445UR0407EA , WSX445 Arbor Type Face Milling Cutter Body, 4.000" Cutting Diameter

ANSI: WSX445UR0407EA

ISO: WSX445UR0407EA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT828465
Delivery date: 3-5 days
$1,099.99

Details

FACE MILL 45 DEGREE 4 SIDED POSITIVE VERY FREE CUTTING. GREAT FOR LIGHT DUTY MACHINES AND SOFT MATERIALS.

WSX445UR0407EA Mitsubishi, WSX445 Arbor Type Face Milling Cutter Body, 4.000" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Insert Type Positive
Application Face Milling
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1970
Tool Material Steel
Cut Dia Max 4.0000 101.60MM
Flutes/Inserts 7
Insert Size Ic 14
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Cool Sply Type Internal
Insert Style SN
