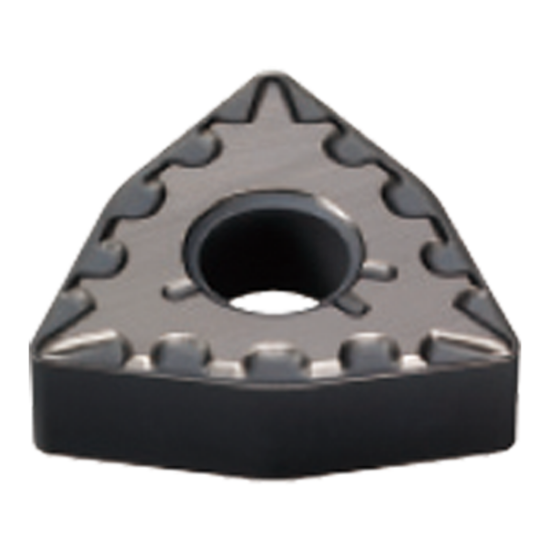

MITSUBISHI WNMG432FH AP25N Turning Insert Trigon Cermet 0.031 Radius

ANSI: WNMG432FH AP25N

ISO: WNMG080408FH AP25N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT130180
Delivery date: 3-5 days
$9.64

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance. Material Grade: P, For Use On: Steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Negative
Application Turning Insert
Made In USA No
Grade AP25N
Shipping State Illinois
Coating Multi-Coated TiAlN
Insert/Tool Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Hand R/L Neutral
