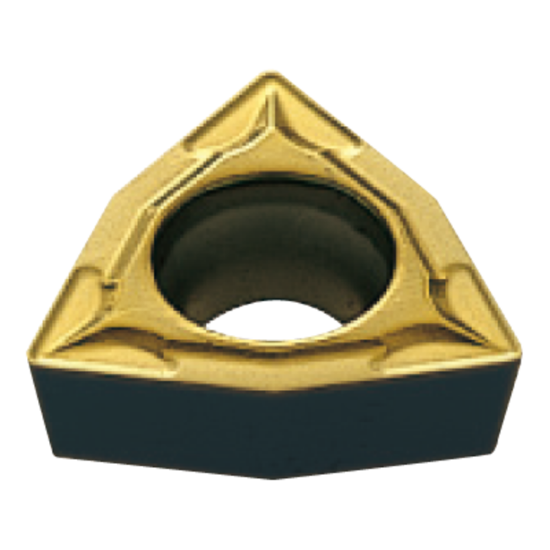

MITSUBISHI WCMT 32.52 MP3025 Turning Insert Trigon Cermet 0.031 Radius

ANSI: WCMT 32.52 MP3025

ISO: WCMT 32.52 MP3025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT603047
Delivery date: 3-5 days
$10.93

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Grade MP3025 series inserts are a PVD coated cermet grade for Steel turning. You can expect excellent tool life when machining small diameter work pieces.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Coating Ti-Compound
Application Turning Insert
Package Size 10
Made In USA No
Shipping State Illinois
Grade MP3025
Insert Application Semi Finishing, Finishing
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 32
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style WC
Insert Shape/Cutter Pocket Shape Trigon
Cutting Edge Mat Cermet
