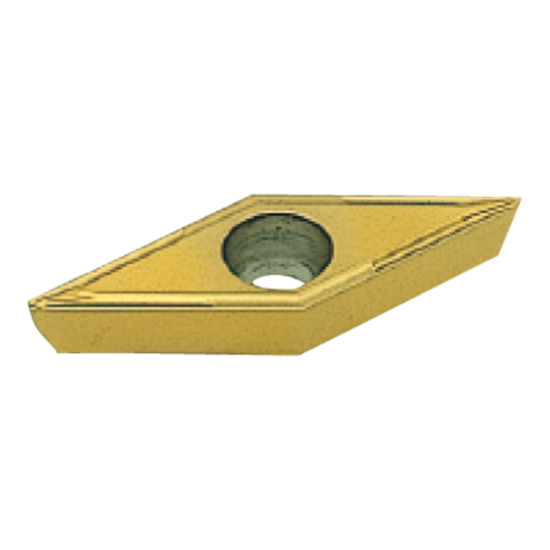

MITSUBISHI VCMT332FV AP25N Turning Insert 35.0° Cermet 0.031 Radius

ANSI: VCMT332FV AP25N

ISO: VCMT160408FV AP25N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT145306
Delivery date: 3-5 days
$18.93

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance. Material Grade: P, For Use On: Steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium, Semi Finishing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Insert Type Positive
Coating Multi-Coated TiAlN
Grade AP25N
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0310 0.79MM
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Cutting Edge Mat Cermet
Hand R/L Neutral
